| 브랜드 이름: | FY |
| 모델 번호: | FY-51BY |
| MOQ: | 1 set |
| 가격: | USD$ 1700/1650 |
| 지불 조건: | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| 공급 능력: | 300 sets per month |

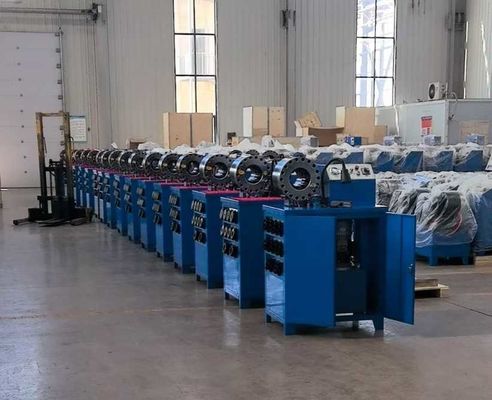

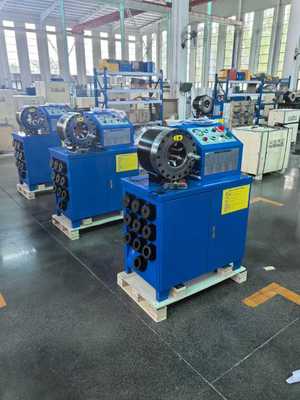

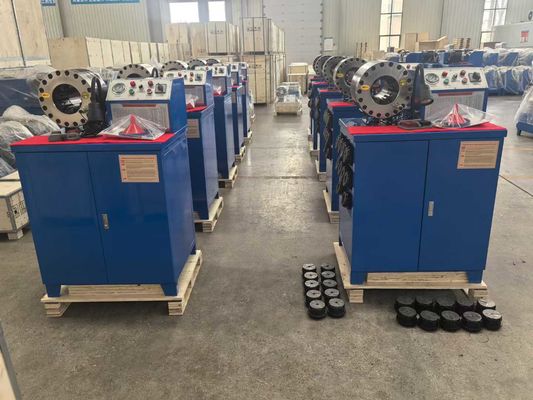

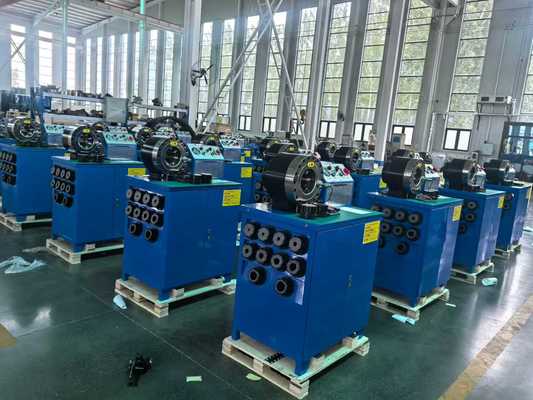

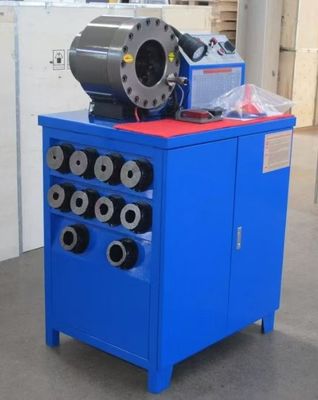

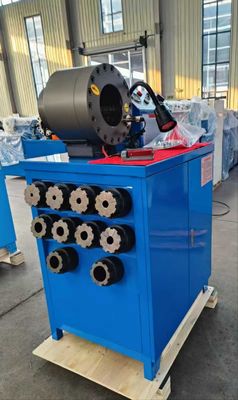

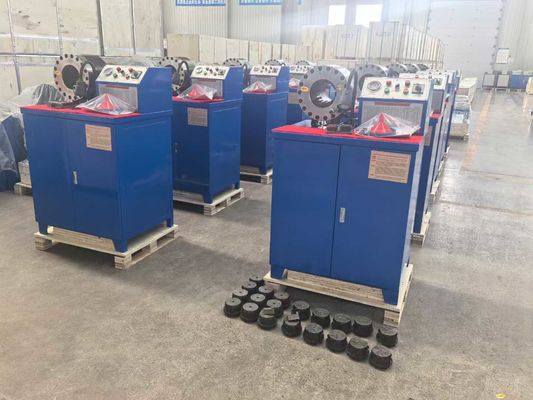

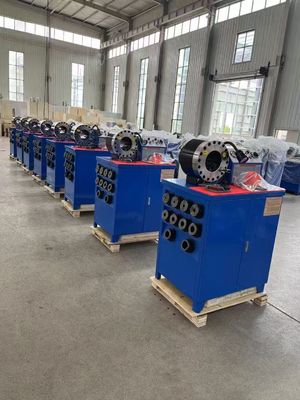

This powerful and portable 2" electric hydraulic hose crimping machine is designed for efficient crimping of hoses ranging from 6mm to 51mm (1/4 inch to 2 inches). Featuring a basic model button system and including 10 dies for versatile applications, it's an essential tool for excavator and hydraulic hose assembly.
| Attribute | Value |
|---|---|
| Model | FY-51BY Hose Crimping Machine |
| Crimping Range | 6-51mm (1/4"-2") |
| Crimping Force | 600 Ton |
| System Pressure | 31.5 MPA |
| Motor Power | 3KW |
| Voltage | 220V/240V/380V/415V (Optional) |
| Work Efficiency | 200 pcs/h |
| Dimensions (L×W×H) | 860×640×1300 mm |
| Net Weight | 310 kg |
| Gross Weight | 326 kg |
| Warranty | 1 Year |
Automatic or semi-automatic mode can be selected for different working requirements.
Free your hands for big hose crimping with convenient foot pedal operation.
Copper wire aluminum motor provides good heat dissipation for continuous operation.
Integrated storage box keeps die sets organized and protected.
