2 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Dies for Versatile Crimping

Name: 2 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

브랜드 이름:	FY
모델 번호:	FY-P38
MOQ:	1 세트
가격:	USD$ 1850/1800/1750/1700
지불 조건:	L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력:	달 당 300 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

China,ShangHai

인증:

전압:

220V/240V/380V/415V(Optional)

총중량:

300kg

순중량:

275kg

전력(w):

3KW/4KW

차원 (L*W*H):

950*630*700 밀리미터

패키지 차원:

1000*680*750 밀리미터

보증:

1년

상태:

새로운

판매 후 서비스 제공:

비디오 기술지원, 온라인 지원

크림 핑 힘:

300ton/0.3MT

제품명:

2인치 P38 유압 호스 압착기 1/4~2인치 범위(빠른 변경 금형 도구 및 랙 포함) 10 다이 6-51mm 압착 가능 최대 2.5인치(더 큰 크기)

크림 핑 범위:

6-38mm/1.5 인치/2 인치

색상:

파래지거나, 파래지거나 특화하세요

애플리케이션:

크림프 호스

자유 다이:

8개 세트

시스템 압력:

26MPA/31.5MPA/260 BAR/315 BAR

펌프의 출력 음량:

2.5L/5L

하이 라이트:

진보적 유압 파이프 권축 기계, 기세 제어 유압 파이프 권축 기계, 파이프 권축 기계

포장 세부 사항:

나무 상자

공급 능력:

달 당 300 세트

강조하다:

2 Inch Crimping Range Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Dies Included Hydraulic Crimper

제품 설명

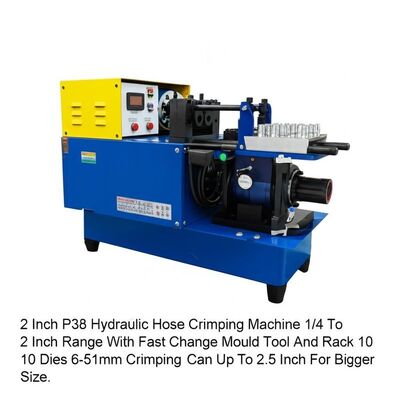

2 Inch P38 Hydraulic Hose Crimping Machine

The 2 Inch P38 Hydraulic Hose Crimping Machine is expertly engineered for seamless crimping of hydraulic hoses, offering an extensive range from 1/4 to 2 inches. This industrial-grade machine features a fast change mould tool and sturdy rack, accommodating a versatile set of 10 dies for crimping hoses between 6mm and 51mm, with capabilities to handle larger sizes up to 2.5 inches. This robust solution is ideal for professionals across various industries, including automotive, construction, and manufacturing.

Key Features

Wide Crimping Range: Capable of crimping hoses from 1/4 inch to 2 inches (6mm to 51mm) and accommodating larger sizes up to 2.5 inches, offering exceptional versatility for different hydraulic applications.
Fast Change Mould Tool: Innovative mould tool enables quick die changes, minimizing downtime and increasing productivity during crimping tasks.
Comprehensive Die Set: With 10 interchangeable dies, users can easily modify the machine to crimp various hose sizes.
Robust Construction: Built with high-quality materials to withstand the rigors of daily use in demanding work environments.
User-Friendly Design: Ergonomic layout and intuitive control panel ensure straightforward operation for all skill levels.

Advantages

Enhanced Productivity: Wide crimping range and fast change mould tool significantly boost workflow efficiency.
Reliable Performance: Capable of securely crimping hoses up to 2.5 inches, delivering consistent results for hydraulic connections.
Versatile Applications: Suitable for various industries from automotive to industrial applications.
Cost-Effective Solution: Efficiency and durable design reduce the need for multiple crimping machines.
Safety-Oriented: Engineered with safety features to protect both operator and equipment.

Technical Specifications

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	8 sets
