유압 호스 압착기
Created with Pixso.

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

브랜드 이름: FY
모델 번호: FY-P38
MOQ: 1 세트
가격: USD$ 1850/1800/1750/1700
지불 조건: L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력: 달 당 300 세트
자세한 정보
원래 장소:
China,ShangHai
인증:
CE
전압:
220V/240V/380V/415V(Optional)
총중량:
300kg
순중량:
275kg
전력(w):
3KW/4KW
차원 (L*W*H):
950*630*700 밀리미터
패키지 차원:
1000*680*750 밀리미터
보증:
1년
상태:
새로운
판매 후 서비스 제공:
비디오 기술지원, 온라인 지원
크림 핑 힘:
300ton/0.3MT
제품명:
빠른 변경 금형 도구와 랙을 사용한 다용도 압착을 위한 10개의 다이가 포함된 2인치 유압 호스 압착 기계는 Tp 2.5인치 압착 크기까지 Rach할 수 있습니다.
크림 핑 범위:
6-38mm/1.5 인치/2 인치
색상:
파래지거나, 파래지거나 특화하세요
애플리케이션:
크림프 호스
자유 다이:
10 세트
시스템 압력:
26MPA/31.5MPA/260 BAR/315 BAR
펌프의 출력 음량:
2.5L/5L
하이 라이트:
진보적 유압 파이프 권축 기계, 기세 제어 유압 파이프 권축 기계, 파이프 권축 기계
포장 세부 사항:
나무 상자
공급 능력:
달 당 300 세트
강조하다:

2.5 Inch Crimping Size Hydraulic Hose Crimping Machine

,

Fast Change Mould Tool Hose Crimper

,

10 Interchangeable Dies Hydraulic Crimper

제품 설명
2.5 Inch Hydraulic Hose Crimping Machine
The 2.5 Inch Hydraulic Hose Crimping Machine is a highly efficient and advanced tool designed for precise crimping of hydraulic hoses. Incorporating a fast change mould tool and featuring 10 interchangeable dies, this machine is engineered to provide versatility across various applications. With a robust PLC control system, it guarantees consistent performance, making it an essential asset for professionals in automotive, construction, and industrial sectors.
Key Features
  • Large Crimping Capacity: Capable of crimping hoses up to 2.5 inches, perfect for applications requiring robust performance and flexibility
  • Fast Change Mould Tool: Innovative design allows for swift transitions between different dies, reducing downtime
  • Comprehensive Die Set: 10 interchangeable dies included for accommodating various hose sizes
  • Advanced PLC Control System: Programmable Logic Controller ensures precise control and consistent results
  • Sturdy Rack System: Provides excellent support during operation, ensuring stability and precision
Operational Advantages
  • Enhanced Efficiency: Fast change mould tool and versatile die set significantly improve productivity
  • Broad Application Range: Suitable for automotive, construction, and various industrial hydraulic systems
  • User-Friendly Operation: Intuitive design and PLC control ensure easy use for operators of all experience levels
  • Cost-Effective Solution: Consolidates multiple functionalities into one machine, reducing equipment costs
  • Safety and Reliability: Built-in safety features protect both user and equipment during operations
Technical Specifications
Model FY-P38 Hose Crimping Machine
Crimping Range 6-38mm (1/4"-1.5")
Crimping Force 300T
System Pressure 26Mpa/31.5Mpa (Optional)
Accuracy 0.01mm
Work Efficiency 200 pcs/h
Voltage Options 220V/240V/380V/415V
Motor Power 3KW/4KW
Dimensions (L*W*H) 950*630*700 mm
Weight 275kg
Die Sets Included 8 sets
Premium Components
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 0

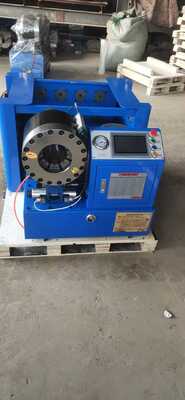

Machine Overview
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 1

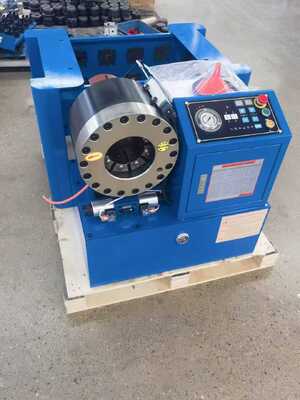

Side View
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 2
PLC Control System
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 3
Internal Components
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 4
Crimping Mechanism
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 5
Operational View
Advanced PLC System
Multifunctional control panel with different operation modes for precise crimping control.
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6

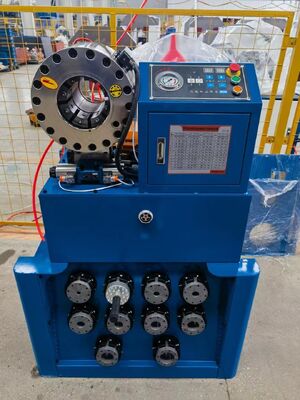

High-Quality Die Sets
8 die sets with hardness 59-63HRC and quick change tool for versatile applications.
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 7
Premium Motor
World-famous motor with high stability for reliable performance.
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 8
Forged Oil Cylinder
Higher anti-wear ability compared to traditional technology for extended service life.
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 9
Applications
The FY-P38 is a high-performance hose crimper capable of crimping various materials including:
  • High pressure stainless steel braided hydraulic oil hoses
  • Industrial flexible pipes
  • Air or water hoses
  • Cables and wires
  • Steel and iron tubes
  • Brake lines in automotive systems
  • Air suspension or springs
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 10
Product Images
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 11
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 12
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 13
2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 14
Product Video
Additional Information
  • Non-standard die sets available
  • Customized die sets can be provided
  • Special voltages (220V, 240V, 380V, 415V) available
  • UC Control High Pressure Hose Crimping Machine
  • High Configuration hydraulic hose machine
  • Numerically Controlled Hydraulic Hose Crimping Machine
