3 Inch 6-76mm PLC Control Hydraulic Hose Crimping Machine with 15 Interchangeable Dies for Efficient Hose Pressing

브랜드 이름:	FY
모델 번호:	FY-CBK-120C
MOQ:	1세트
가격:	5000
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력:	달 당 300 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 상하이

인증:

문서:

OUR CATALOGUE.pdf

무게:

1250kg

상태:

새로운

차원 (L*W*H):

755*1045*1630MM

보증:

1년

판매 후 서비스 제공:

비디오 기술지원, 온라인 지원

전압:

110V/220V/380V/415V 50/60Hz

전력(w):

5.5KW

전력(w):

5.5KW

크림 핑 힘:

1000T

색상:

청색 / 백색 또는 관습

크림 핑 범위:

6-76mm,1/4"~3",1/4"-3"

제품명:

3 인치 6-76mm 6 전선 PLC 제어 시스템 효율적인 호스 프레싱을 위한 15개의 다이 및 빠른 변경 금형이 있는 큰 압력 전력 유압 호스 압착 기계

제품명:

3 인치 6-76mm 6 전선 PLC 제어 시스템 효율적인 호스 프레싱을 위한 15개의 다이 및 빠른 변경 금형이 있는 큰 압력 전력 유압 호스 압착 기계

어플리케이션:

크림프 호스

자유 다이:

15개 세트

정격압력:

31.5MPA

키워드:

PLC 유압 호스 권축 기계

하이 라이트:

3 인치 호스 프레스 기계, 나선형 호스 프레스 기계, 호스 파이프 프레스 기계

포장 세부 사항:

표준 목재 상자를 수출합니다

공급 능력:

달 당 300 세트

강조하다:

6-76mm Crimping Range Hydraulic Hose Crimping Machine

PLC Control System Hose Pressing Machine

15 Interchangeable Dies Hose Crimper

제품 설명

3 Inch 6-76mm PLC Control System Hydraulic Hose Crimping Machine

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is engineered for optimal efficiency and precision in hose crimping operations. Designed specifically for hydraulic repair shops, automotive service centers, and oil industry applications in the USA market, this machine delivers substantial crimping power for hoses with up to 6 wires. Featuring an advanced PLC control system, 15 interchangeable dies, and fast change mould design, this equipment ensures seamless operation across various hydraulic applications.

Key Features

Comprehensive Crimping Range: Capable of crimping hoses from 6mm to 76mm, suitable for diverse hydraulic hose types and applications.
Advanced PLC Control System: Programmable Logic Controller enhances operational precision with customizable settings, improving crimping accuracy while minimizing human error.
Wide Selection of Dies: Includes 15 interchangeable dies for versatile crimping of various hose sizes and types.
Fast Change Mould Design: Innovative quick-change feature enables rapid die swaps, significantly reducing downtime and boosting productivity in high-demand environments.
High Pressure Capacity: Engineered to deliver substantial pressure power, ensuring strong and reliable crimping results for maintaining hydraulic connection integrity.

Operational Advantages

Enhanced Productivity: Wide crimping range combined with fast change moulds enables operators to complete jobs efficiently, accelerating service in busy workshops.
Versatile Industry Application: Ideal for hydraulic repair shops, automotive servicing, and oil industry applications, meeting diverse business needs in hydraulic systems.
Cost-Effective Solution: Simplifies operations and reduces the need for multiple machines, saving on equipment and maintenance costs.
Increased Safety Features: Built-in safety mechanisms ensure secure operations, reducing operator risks and preventing accidents during crimping.
User-Friendly Design: Intuitive interface paired with PLC control system allows effective operation by users at all experience levels.

Technical Specifications

Specification	Details
Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	15 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	84010901760mm
Net Weight	1250kg

Additional Models

Model	Specifications
FY-CBK-120C Hose Pressing Machine	Crimping Range: 6-76mm (1/4"-3") Crimping Force: 2800KN Max. Opening: 165mm Customized die sets available Special voltage options: 110V/220V/380V/415V 50/60Hz

Frequently Asked Questions

What sizes of hoses can this hydraulic hose crimping machine handle?
The machine effectively crimps hoses ranging from 6mm to 76mm, accommodating various types and sizes.

How does the PLC control system benefit operation?
The PLC control system enhances the precision and customization of crimping operations, improving overall accuracy and efficiency.

What is the benefit of having 15 interchangeable dies?
This variety allows for flexibility in crimping different hose sizes without the need for additional equipment, streamlining operations in workshops.

Is the machine suitable for heavy-duty use?
Yes, with its robust construction and high pressure capacity, it is designed to withstand demanding conditions typical of hydraulic repair and automotive service settings.

How does the fast change mould design improve efficiency?
The fast change mould feature allows for quick swaps between dies, significantly reducing downtime and enhancing workflow efficiency.

Product Images

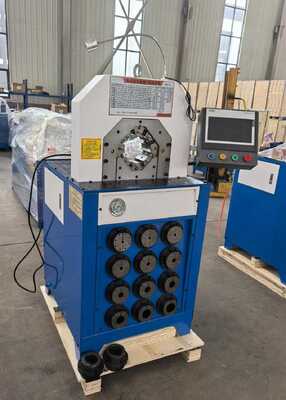

Front view

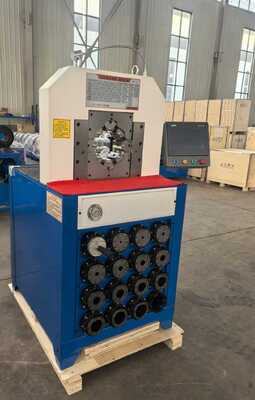

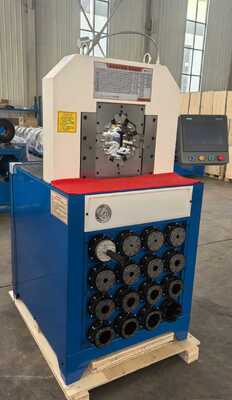

Side view

Control panel

Die set

In operation

Crimping demonstration

Component details

Machine components

FY-CBY-51B Model

Specifications

Workshop environment

Close-up view

Operator using machine

Operator using machine

Operation Video

View Operation Video

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
