6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

브랜드 이름:	FY
모델 번호:	FY-P38
MOQ:	1세트
가격:	USD$ 1850/1800/1750/1700
지불 조건:	L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력:	달 당 300 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

China,ShangHai

인증:

전압:

220V/240V/380V/415V(Optional)

총중량:

300kg

순중량:

275kg

전력(w):

3KW/4KW

치수(l*w*h):

950*630*700 밀리미터

패키지 차원:

1000*680*750 밀리미터

보증:

1년

상태:

새로운

판매 후 서비스 제공:

비디오 기술지원, 온라인 지원

압착력:

300ton/0.3MT

제품명:

2인치 전기 압착기 최대 2.5인치 6-51mm 유압 호스 압착기(빠른 변경 금형 도구 및 다목적 압착용 다이 10개 포함)

압착 범위:

6-51mm/1.5인치/2인치

색상:

파래지거나, 파래지거나 특화하세요

애플리케이션:

크림프 호스

자유 다이:

10 세트

시스템 압력:

26MPA/31.5MPA/260 BAR/315 BAR

펌프의 출력 음량:

2.5L/5L

하이 라이트:

진보적 유압 파이프 권축 기계, 기세 제어 유압 파이프 권축 기계, 파이프 권축 기계

포장 세부 사항:

나무 상자

공급 능력:

달 당 300 세트

강조하다:

6-51mm Crimping Range Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

제품 설명

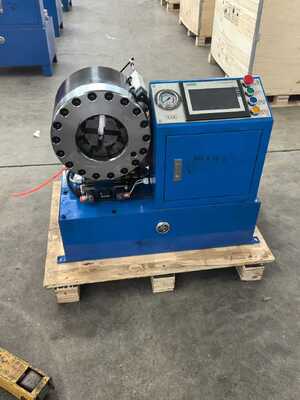

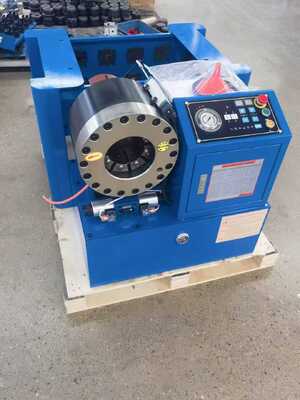

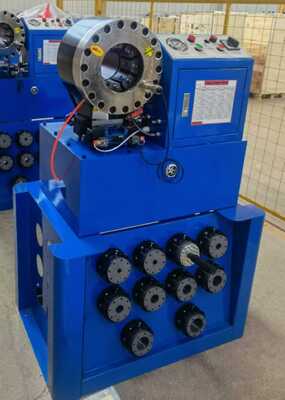

2 Inch Electric Hydraulic Hose Crimping Machine

Introducing the 2 Inch Electric Hydraulic Hose Crimping Machine, a versatile and efficient tool designed for precision crimping in hydraulic applications. This advanced machine can handle hoses up to 2.5 inches in diameter and features a crimping range of 6mm to 51mm. Equipped with a fast change mould tool and 10 interchangeable dies, this machine is ideal for hydraulic repair shops, automotive service centers, and oil industries in the USA, Europe, and Southeast Asia.

Key Features

Versatile Crimping Capacity: Capable of crimping hoses ranging from 6mm to 51mm, suitable for multiple applications
Fast Change Mould Tool: Innovative design minimizes downtime with quick and hassle-free die adjustments
Electric Power Operation: Consistent hydraulic system delivers reliable performance under various working conditions

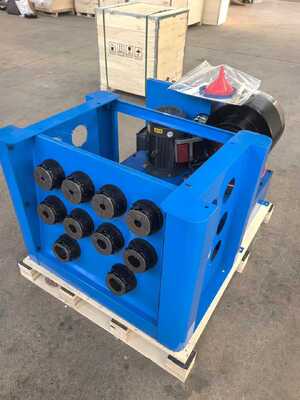

10 Interchangeable Dies: Flexible handling of different hose sizes for diverse tasks
Durable Construction: High-quality materials ensure long-lasting performance in demanding environments

Operational Advantages

Increased Efficiency: Quick die changes and electric operation enhance workshop productivity
Cost-Effective Solution: Accommodates multiple hose sizes, reducing equipment and maintenance costs
User-Friendly Design: Intuitive controls and fast change features suitable for technicians of all skill levels
Reliable Performance: Engineered for durability with consistent, secure crimping results
Wide Applicability: Ideal for hydraulic repair shops, automotive facilities, and oil industries

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
