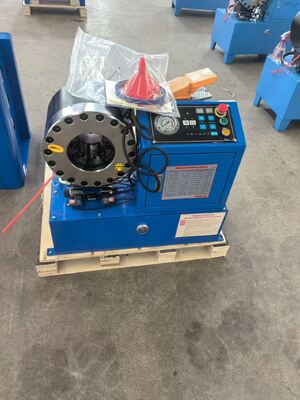

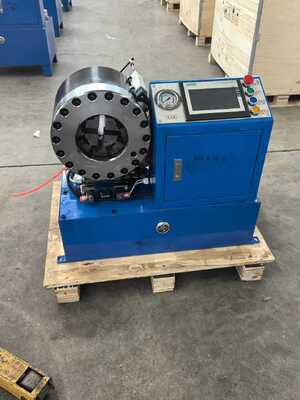

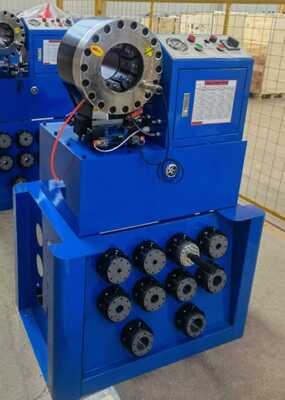

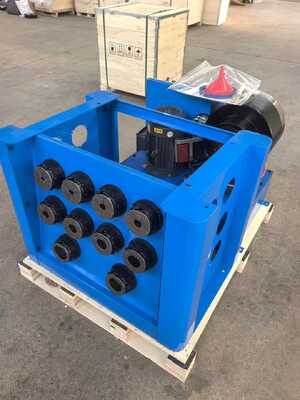

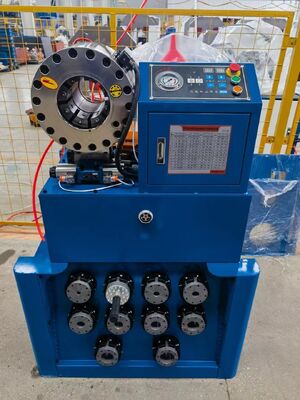

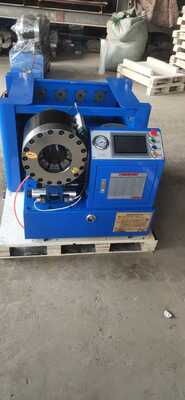

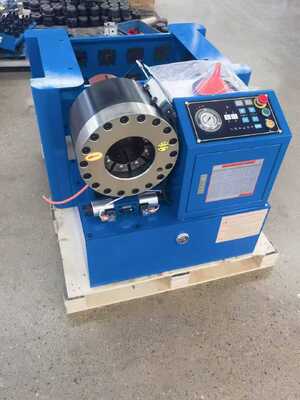

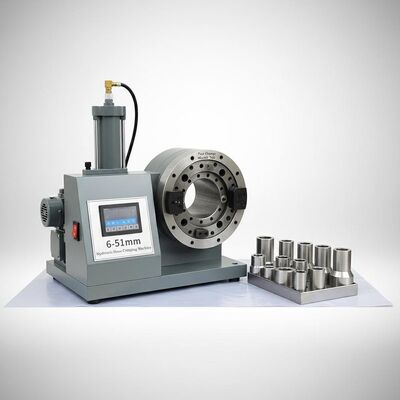

6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

브랜드 이름:	FY
모델 번호:	FY-P38
MOQ:	1세트
가격:	USD$ 1850/1800/1750/1700
지불 조건:	L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력:	달 당 300 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

China,ShangHai

인증:

전압:

220V/240V/380V/415V(Optional)

총중량:

300kg

순중량:

275kg

전력(w):

3KW/4KW

치수(l*w*h):

950*630*700 밀리미터

패키지 차원:

1000*680*750 밀리미터

보증:

1년

상태:

새로운

판매 후 서비스 제공:

비디오 기술지원, 온라인 지원

압착력:

300ton/0.3MT

제품명:

2인치 최대 2.5인치 6-51mm 유압 호스 압착기(빠른 변경 금형 도구 및 랙 포함) 및 10개의 교환 가능한 다이 디지털 제어 시스템(다용도 압착용)

압착 범위:

6-51mm/1.5인치/2인치

색상:

파래지거나, 파래지거나 특화하세요

애플리케이션:

크림프 호스

자유 다이:

10 세트

시스템 압력:

26MPA/31.5MPA/260 BAR/315 BAR

펌프의 출력 음량:

2.5L/5L

하이 라이트:

진보적 유압 파이프 권축 기계, 기세 제어 유압 파이프 권축 기계, 파이프 권축 기계

포장 세부 사항:

나무 상자

공급 능력:

달 당 300 세트

강조하다:

6-51mm Crimping Range Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

제품 설명

2-2.5 Inch Hydraulic Hose Crimping Machine

Introducing the 2-2.5 Inch Hydraulic Hose Crimping Machine, designed to deliver exceptional performance and efficiency for all your hydraulic applications. Capable of crimping hoses ranging from 6mm to 51mm, this versatile machine is equipped with a fast change mould tool, ensuring quick adjustments and seamless operation. Engineered for hydraulic repair shops, automotive service centers, and oil industries in the USA, Europe, and Southeast Asia, this machine features 10 interchangeable dies and a state-of-the-art digital control system for precise and consistent results.

Key Features

Crimping Range: Handles hose sizes from 2 inches up to 2.5 inches (51mm to 63.5mm), suitable for various hydraulic applications
Fast Change Mould Tool: Enables quick die swaps, significantly reducing downtime and enhancing productivity
10 Interchangeable Dies: Allows for quick adaptations to different hose sizes for versatile task handling
Digital Control System: Ensures precise monitoring and adjustment of crimping parameters for enhanced accuracy
Robust Build: Constructed with high-quality materials to withstand rigorous use and ensure long-term reliability

Advantages

Increased Productivity: Quick-change mould tool and digital control system enable faster operation
Versatile Applications: Ideal for hydraulic repair shops, automotive services, and oil distribution
Consistent Quality: Digital control system guarantees reliable crimping results, minimizing leaks and failures
Cost-Effective Solution: Combines multiple functions into one machine, reducing equipment costs
Easy Maintenance: Durable design requires minimal maintenance for continuous operation

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
