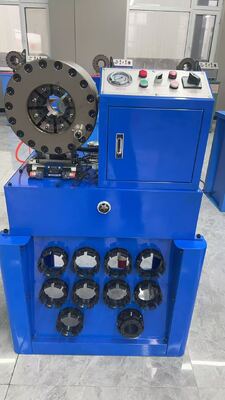

6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

브랜드 이름:	FY
모델 번호:	FY-P38
MOQ:	1세트
가격:	USD$ 1850/1800/1750/1700
지불 조건:	L/C,T/T,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력:	달 당 300 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

China,ShangHai

인증:

문서:

our new catalogue.pdf

전압:

220V/240V/380V/415V(Optional)

총중량:

300kg

순중량:

275kg

전력(w):

3KW/4KW

치수(l*w*h):

950*630*700 밀리미터

패키지 차원:

1000*680*750 밀리미터

보증:

1년

상태:

새로운

판매 후 서비스 제공:

비디오 기술지원, 온라인 지원

압착력:

300ton/0.3MT

제품명:

2인치 압착 최대 2.5인치 6-51mm 유압 호스 압착 기계(다용도 압착을 위한 빠른 변경 금형 도구 및 랙 및 10개의 교환 가능한 다이 포함)

압착 범위:

6-51mm/1.5인치/2인치

색상:

파래지거나, 파래지거나 특화하세요

애플리케이션:

크림프 호스

자유 다이:

10 세트

시스템 압력:

26MPA/31.5MPA/260 BAR/315 BAR

펌프의 출력 음량:

2.5L/5L

하이 라이트:

진보적 유압 파이프 권축 기계, 기세 제어 유압 파이프 권축 기계, 파이프 권축 기계

포장 세부 사항:

나무 상자

공급 능력:

달 당 300 세트

강조하다:

2 inch hydraulic hose crimping machine

hydraulic hose crimper with interchangeable dies

fast change mould hose crimping tool

제품 설명

2 Inch Crimping Up To 2.5 Inch 6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And Rack And 10 Interchangeable Dies For Versatile Crimping

Versatile 2-Inch Hydraulic Hose Crimping Machine with Fast-Change Tooling System
Elevate your hydraulic service efficiency with our industrial Hydraulic Hose Crimping Machine. Specifically designed for high-volume hydraulic/car repair shops and the demanding oil and gas industry, this machine bridges the gap between standard 2-inch crimping and specialized large-bore requirements.
This model is a top choice for professionals in the USA, Europe, and Southeast Asia who demand speed, precision, and a clutter-free workspace.

Key Features & Product Highlights
• Extended Crimping Capability: While optimized for standard 6mm to 51mm (2-inch) hoses, this high-performance unit is engineered with an oversized opening to accommodate specialized fittings up to 2.5 inches.
• Revolutionary Fast-Change Mould Tool: Eliminate the manual labor of swapping dies. Our magnetic quick-change tool allows you to switch all eight die segments in seconds, significantly reducing downtime.
• Integrated Die Rack: Keep your workspace organized and your dies protected. The built-in storage rack ensures that all 10 interchangeable die sets are within arm’s reach and organized by size.
• Precision Control: Features a high-accuracy micrometer adjustment system to ensure every crimp meets exact manufacturer specifications for high-pressure safety.
Why This Machine Stands Out
1. Maximum Productivity: The combination of the Fast-Change Tool and the Die Rack makes this one of the fastest manual-load machines on the market—perfect for busy repair shops.
2. Unmatched Versatility: From small automotive fuel lines to heavy-duty industrial 4-wire spiral hoses, this machine handles it all with a single setup.
3. Built for Rigorous Use: Designed with a reinforced machine head and premium hydraulic valves to ensure consistent performance in the high-heat environments of Southeast Asia or the heavy-duty oil fields of North America.

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
