2 Inch DX68 Blue Color Electric Hydraulic Hose Crimper With Fast Change Mould Tools 6-51mm 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

브랜드 이름:	FanYing
모델 번호:	FY-51WS-1
MOQ:	1세트
가격:	USD$ 1350
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력:	달 당 10000 세트

자세한 정보

제품 설명

자세한 정보

원래 장소:

China,ShangHai

문서:

our new catalogue.pdf

모터 파워:

3KW/4KW

전압:

220V/240V/380V/415V

압착 범위:

6mm ~ 51mm

크림핑 정확도:

±0.01mm

압착력:

600T

순중량:

245kg/260kg

제품명:

빠른 변경 금형 도구가 있는 2 인치 DX68 파란색 전기 유압 호스 크림퍼 6-51mm 10 다이 정확도 및 시간당 200 PC 효율성

포장 세부 사항:

표준 나무 상자

공급 능력:

달 당 10000 세트

강조하다:

2 inch DX68 hydraulic hose crimper

electric hose crimper with fast change mould

DX68 crimping machine 10 dies accuracy

제품 설명

2 Inch DX68 Blue Color Electric Hydraulic Hose Crimper With Fast Change Mould Tools 6-51mm 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

2 Inch DX68 Blue Electric Hydraulic Hose Crimper — Fast Change Mould Tools, 6–51 mm, 10 Dies, High Accuracy & 200 Pcs/Hour
Product Overview
The 2 Inch DX68 Blue Color Electric Hydraulic Hose Crimper is a high-efficiency solution for professional hydraulic hose assembly. Built for consistent crimp quality and fast workflow, this Hydraulic Hose Crimper supports a 6–51 mm crimping range and includes 10 interchangeable dies for common hose and fitting sizes. With fast change mould tools, reliable accuracy control, and an estimated up to 200 pcs/hour efficiency, it’s an excellent choice for hydraulic/car repair shops, oil/hose service providers, and hose workshops serving the USA, Europe and Southeast Asia.
Product Features & Characteristics
• 2 Inch Class Crimping Capability (6–51 mm):
Designed for medium-size hydraulic hoses widely used in automotive, industrial and oil-service applications.
• Electric Hydraulic Crimper for Stable Force:
Hydraulic power provides controlled compression to support uniform crimp formation across repeated cycles.
• Fast Change Mould Tools:
Simplifies die/mould switching so technicians can reduce setup time and improve daily throughput.
• 10 Interchangeable Dies Included:
Standard die set helps cover multiple hose sizes, allowing flexible production and quicker changeovers.
• Accuracy-Oriented Operation:
Engineered to help maintain consistent crimp profiles, supporting reliable assemblies and reducing rework.
• Workshop-Friendly Blue Industrial Finish:
Durable exterior for daily use in repair bays and production environments.
Advantages
• Higher Production Efficiency:
Up to 200 pcs/hour helps support busy repair schedules and higher-volume hose assembly needs.
• Improved Consistency & Reduced Callback Risk:
Uniform crimp results help minimize leak-related issues and improve customer satisfaction.
• Faster Workflow for Multi-Size Jobs:
Fast change mould tools and 10 dies support efficient switching between commonly requested hose sizes.
• Strong Fit for Regional Markets:
Suitable for professional workshops in the USA, Europe, and Southeast Asia where turnaround time and assembly quality matter.

Technical Specifications

Feature	Specification
Maximum Hose Capacity	Up to 2 inches (51mm)
Crimping Force	600T
Efficiency	200 pieces per hour
Number of Dies	10
Weight	245 kg
Dimensions	730mm x 475mm x 780mm
Motor Power	3KW/4KW (Customizable)
Voltage	220V/240V/380V/415V (Customizable)
Crimping Accuracy	±0.01mm

Industrial Applications

Construction machinery hydraulic systems
Oilfield exploitation equipment
Steel smelting operations
Shipbuilding hydraulic circuits
Agricultural machinery maintenance
Coal mining hydraulic applications

Product Images

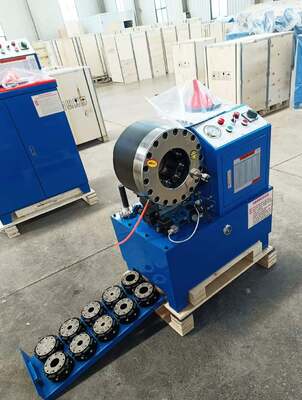

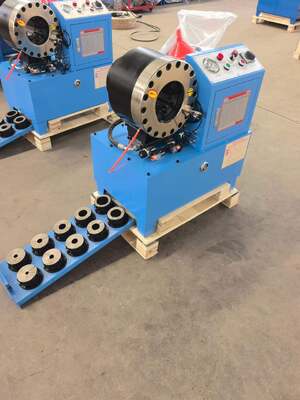

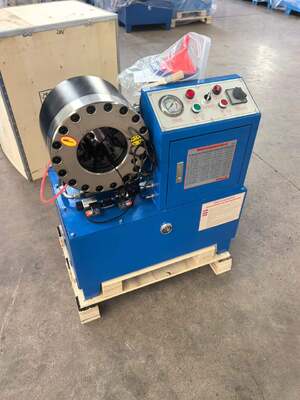

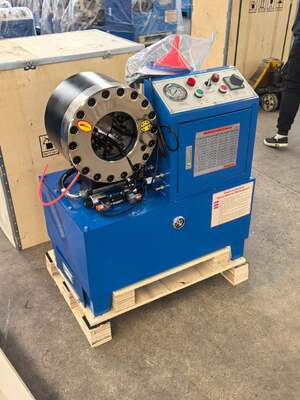

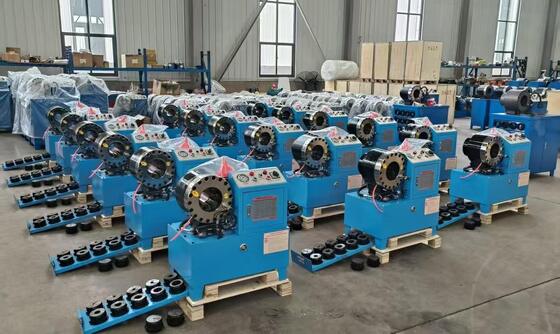

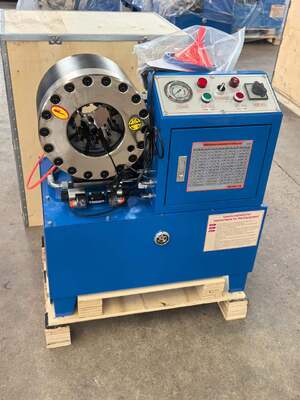

2 Inch DX68 Blue Color Electric Hydraulic Hose Crimper With Fast Change Mould Tools 6-51mm 10 Dies Accuracy And 200 Pcs Per Hour Efficiency 0

Frequently Asked Questions

What maximum hose size can the DX68 crimp?

The DX68 crimps hoses up to 51 mm (2 inches) in outer diameter.

How accurate are the crimp settings?

The machine provides crimping accuracy of ±0.01 mm for consistent, repeatable results.

Is the 200 pcs/hour rating guaranteed?

The 200 pcs/hour figure is a typical production benchmark under ideal conditions. Actual throughput depends on hose type, fittings, and workflow.

Which voltage should I order -- 220V or 380V?

Select the voltage that matches your facility's supply. The DX68 is available in both configurations; specify at order to ensure compatibility.

Can I purchase additional or custom dies?

Yes. Additional and custom die sets for special fittings or non-standard hoses are available—contact the supplier with your fitting specifications.

What types of hoses can this crimping machine handle?

The DX68 can effectively crimp various hydraulic hoses, including rubber and reinforced types, depending on the selected die.

How quickly can I switch between different dies?

Changing dies is designed to be quick and efficient, allowing you to enhance productivity with minimal downtime.

What is the brand name of DX68 Hose Crimping Machine?

The brand name is FanYing, a trusted manufacturer of industrial crimping equipment.

Where is it manufactured?

All machines are manufactured in our Shanghai, China facility to international quality standards.

Conclusion: The DX68 Electric 2 Inch Hydraulic Hose Crimper delivers precision, reliability and throughput for professional hose assembly environments. With ±0.01 mm accuracy, 10 dies and dual-voltage options, it is a strong choice for customers in the USA, Europe and Southeast Asia seeking consistent, high-quality hydraulic hose crimps.
