고무 호스 권축 기계
Created with Pixso.

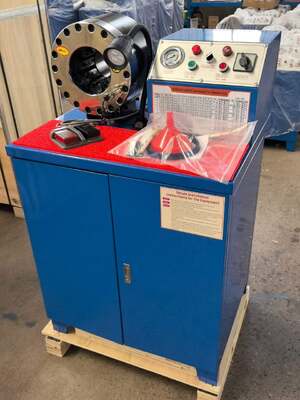

2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications

2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications

브랜드 이름: FanYing
모델 번호: FY-51BY
MOQ: 1세트
가격: negotiable
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 달 당 10000 세트
자세한 정보
원래 장소:
China,ShangHai
무게:
0.31톤
시스템 압력:
315바=31.5Mpa
재료:
고무/호스
보증:
1년=12개월
압착력:
600T/0.6MT
유형:
압착기/크림퍼/호스 압착기
제품명:
2 인치 600 톤 6-51mm 고무 호스 주름을 잡는 기계 10개의 교환할 수 있는 거푸집 및 유압 신청을 가진 더 높은 모형 파란 색깔 220v/380v 전압
색상:
파란색/녹색 또는 클라이언트 요구에 따라
포장 세부 사항:
표준 나무 상자
공급 능력:
달 당 10000 세트
강조하다:

2 inch rubber hose crimping machine

,

600 ton hydraulic crimping machine

,

rubber hose crimper with 10 dies

제품 설명
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications

2 Inch 600 Ton (6–51mm) Rubber Hose Crimping Machine — Blue, 220V/380V, 10 Interchangeable Dies (Hydraulic Applications)
Product Overview
The 2 Inch 600 Ton Rubber Hose Crimping Machine is a higher-model hydraulic-focused solution for professional hose assembly and repairs. Designed for reliable crimp quality, strong crimping performance, and efficient workshop operation, this Rubber Hose Crimping Machinesupports a 6–51mm crimping range (up to 2 inch class) and delivers 600 ton crimping force. Supplied in a blue industrial design and available in 220V/380V voltage, it includes 10 interchangeable dies to help hydraulic/car repair shops, oil/hose service teams, and maintenance facilities in the USA, Europe, and Southeast Asia complete dependable hose connections with reduced rework.
Product Features & Characteristics
• 600 Ton High Crimping Force
Strong compression for secure, leak-resistant crimp connections—ideal for frequent repair work and demanding hydraulic applications.
• 6–51mm Crimping Range (Up to 2 Inch)
Covers many common medium rubber hose sizes used in automotive, hydraulic, and industrial systems.
• Hydraulic Crimping Performance
Hydraulic drive supports controlled force application, helping produce uniform crimp results for consistent fit and performance.
• 10 Interchangeable Dies Included
A standard die set enables fast setup for different hose and fitting sizes, improving shop flexibility and throughput.
• 220V/380V Voltage Options
Choose the correct voltage configuration to match your workshop power system across USA and Europe, while remaining suitable for SEA installations.
• Blue High-Model Industrial Finish
Durable and workshop-ready appearance designed for regular daily use.
Advantages
• More Reliable Assemblies: High tonnage + correct die matching helps achieve consistent crimp formation.
• Improved Efficiency in Repairs: Ten interchangeable dies reduce downtime when switching jobs.
• Suitable for Multiple Markets: 220V/380V availability supports easy adoption in the USA, Europe, and Southeast Asia.
• Built for Hydraulic/Car Repair Needs: Strong performance for oil/hose repairs and frequent maintenance workflows.

  • 2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 0

    2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 1

  1. 2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 2

2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 3
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 4
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 5
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 6
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 7
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 8
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 9
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 10
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 11
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 12
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 13
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 14
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 15
2 Inch 600 Ton 6-51mm Rubber Hose Crimping Machine Higher Model Blue Color 220v/380v Voltage With 10 Interchangeable Dies And Hydraulic Applications 16
Technical Specifications
Specification Value
Crimping Range 6-51 mm
Crimping Force 600 T
Quantity of Dies 10 sets
Accuracy 0.01 mm
System Pressure 31.5 MPa
Motor Power 3 kW
Voltage Options 220V/240V/380V/415V
Work Efficiency 200 pcs/h
Maximum Open Diameter 114 mm
Machine Dimensions 860 * 640 * 1300 mm
Net Weight 310 kg
Warranty 1 Year
Operational Advantages
  • Enhanced Efficiency: Strong crimping force and quick-change dies increase workshop productivity
  • Cost-Effective Solution: Accommodates multiple hose sizes, reducing equipment investment
  • User-Friendly Operation: Intuitive design requires minimal training for technicians
  • Dependable Performance: Heavy-duty construction minimizes operational interruptions
  • Multi-Industry Application: Suitable for hydraulic repair, automotive service, and oil industries
Industrial Applications

The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine serves multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.

Product Support & Customization

Manufactured in Shanghai, China with comprehensive 1-year warranty. Complete technical support available 24/7 with trained technicians providing onsite installation, training, maintenance, and repair services.

Frequently Asked Questions
What sizes of hoses can this machine crimp?
The rubber hose crimping machine can handle hoses ranging from 6mm to 51mm, making it suitable for various rubber hose applications.
How does the fast change mould system enhance workflow?
The fast change mould system allows for quick swaps between dies, significantly reducing downtime and enhancing workflow efficiency in busy settings.
What is the maximum crimping force of this machine?
This machine offers an impressive crimping force of 600 tons, capable of securely crimping high-pressure rubber hoses.
Is this machine suitable for heavy-duty applications?
Yes, designed for high crimping force, this machine is ideal for heavy-duty applications in hydraulic and automotive fields.
How durable is the construction of this machine?
Constructed from high-quality materials, the machine is built for longevity and reliability, even with continuous use in demanding environments.
Professional-Grade Performance: The 2 Inch 600T Rubber Hose Crimping Machine is an essential tool for professionals in the hydraulic and automotive industries. With its high crimping force, versatile design, and user-friendly operation, it boosts productivity and ensures reliable hose management. Invest in this high-performance rubber hose crimping machine to meet your operational demands and achieve outstanding results in your crimping applications!
